LM25011A - 42-V 2-A Constant On-Time Switching Regulator

Product Overview

Texas Instruments

Part number	LM25011A
Manufacturer	Texas Instruments
File Size	1.28 MB
Description	42-V 2-A Constant On-Time Switching Regulator
Datasheet	LM25011A Datasheet
Note	This datasheet PDF includes multiple part numbers: LM25011A, LM25011. Please refer to the document for exact specifications by model.

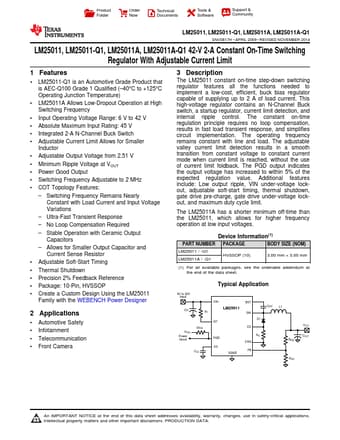

Additional preview pages of the LM25011A datasheet.

The LM25011 constant on-time step-down switching regulator

1 LM25011-Q1 is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified (.
40°C to +125°C Operating Junction Temperature).
LM25011A Allows Low-Dropout Operation at High Switching Frequency.
Input Operating Voltage Range: 6 V to 42 V.
Absolute Maximum Input Rating: 45 V.
Integrated 2-A N-Channel Buck Switch.
Adjustable Current Limit Allows for Smaller Inductor.
Adjustable Output Voltage from 2.51 V.
Minimum Ripp.
