LM26001 - Switching Regulator

LM26001 Description

www.DataSheet4U.com LM26001 1.5A Switching Regulator with High Efficiency Sleep Mode PRELIMINARY May 2006 LM26001 1.5A Switching Regulator with Hig.
The LM26001 is a switching regulator designed for the high efficiency requirements of applications with stand-by modes.

LM26001 Features

* a low-current sleep mode to maintain efficiency under light-load conditions and current-mode control for accurate regulation over a wide input voltage range. Quiescent current is reduced to 10 µA typically in shutdown mode and less than 40 µA in sleep mode. Forced PWM mode is also available to disab

📥 Download Datasheet

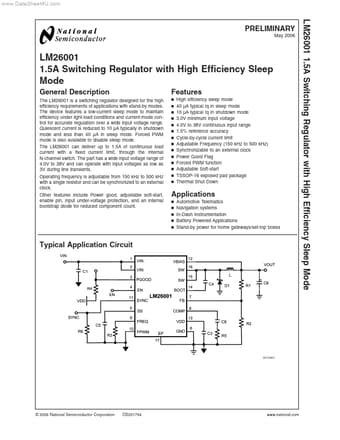

Preview of LM26001 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM26001
Manufacturer
National Semiconductor
File Size
880.87 KB
Datasheet
LM26001_NationalSemiconductor.pdf
Description
Switching Regulator
