LM3485

Hysteretic PFET Buck Controller

National Semiconductor

LM3485 Features

* n Easy to use control methodology n No control loop compensation required Typical Application Circuit 20034608 © 2002 National Semiconductor Corporation DS200346 www.national.com LM3485 Connection Diagram Top View 20034609 8 Lead Plastic MSOP-8 NS package Number MUA08A Package Marking and

LM3485 General Description

The LM3485 is a high efficiency PFET switching regulator controller that a system designer can use to quickly and easily develop a small, low cost, switching buck regulator for a wide range of applications. The use of a hysteretic control scheme provides for simple design without any control loop st.

LM3485 Datasheet (369.89 KB)

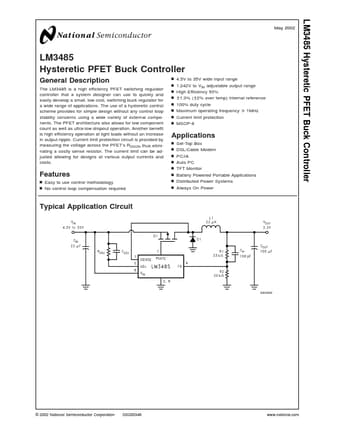

LM3485 Datasheet Preview — Preview of LM3485 PDF

Datasheet Details

Part number:

LM3485

Manufacturer:

National Semiconductor

File Size:

369.89 KB

Description:

Hysteretic pfet buck controller.
