LM3481-Q1, LM3481 - High-Efficiency Controller

LM3481-Q1 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM3481, LM3481-Q1 SNVS346F * NOVEMBER 2007 *.
The LM3481 device is a versatile Low-Side N-FET high-performance controller for switching regulators.

LM3481-Q1 Features

* 1 LM3481QMM are Automotive-Grade Products That are AEC-Q100 Grade 1 Qualified (
* 40°C to +125°C Operating Junction Temperature)
* 10-Lead VSSOP Package
* Internal Push-Pull Driver With 1-A Peak Current Capability
* Current Limit and Thermal Shutdown

LM3481-Q1 Applications

* Automotive Start-Stop Applications
* Automotive ADAS Driver Information
* One Cell/Two Cell Li-ion Battery Powered Portable Bluetooth Audio Systems
* Notebooks, PDAs, Digital Cameras, and Other Portable Applications
* Offline Power Supplies
* Set-Top

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM3481-Q1, LM3481. Please refer to the document for exact specifications by model.

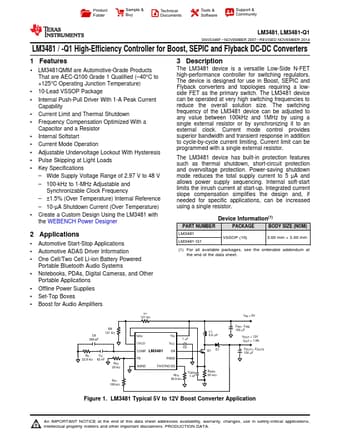

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM3481-Q1, LM3481
Manufacturer
Texas Instruments ↗
File Size
1.66 MB
Datasheet
LM3481-etcTI.pdf
Description
High-Efficiency Controller
Note
This datasheet PDF includes multiple part numbers: LM3481-Q1, LM3481.
Please refer to the document for exact specifications by model.
