LM3488-Q1 Automotive High-Efficiency Controller

The LM3488 is a versatile low-side N-FET highperformance controller for switching regulators. This device is suitable for use in topologies requiring lowside FET, such as boost, flyback, or SEPIC. Moreover, the LM3488 can be operated at extremely high switching frequency to reduce the overall soluti.

LM3488-Q1 Features

* 1 Automotive Grade Product, AEC-Q100 Qualified

* 8-Lead VSSOP Package

* Internal Push-Pull Driver With 1-A Peak Current Capability

* Current Limit and Thermal Shutdown

* Frequency Compensation Optimized With a Capacitor and a Resistor

* Internal Soft-

LM3488-Q1 Datasheet (1.69 MB)

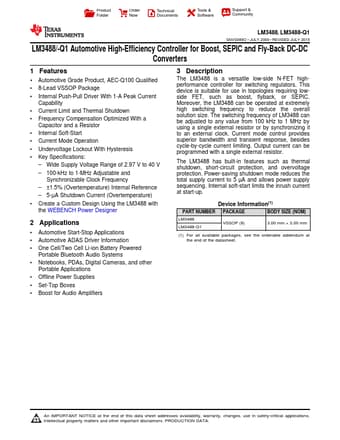

Preview of LM3488-Q1 PDF

Datasheet Details

Part number:

LM3488-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.69 MB

Description:

Automotive high-efficiency controller.
