LM45, SOT-23 Precision Centigrade Temperature Sensors

LM45 SOT-23 Precision Centigrade Temperature Sensors July 1999 LM45 SOT-23 Precision Centigrade Temperature Sensors General .
The LM45 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temper.

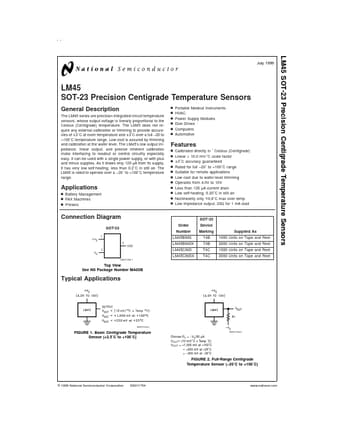

datasheet Preview Page 1 from Datasheet4u.com

LM45_NationalSemiconductor.pdf

LM45 Datasheet Preview — Preview of LM45 PDF

Datasheet Details

Part number:

LM45

Manufacturer:

National Semiconductor

File Size:

215.32 KB

Description:

SOT-23 Precision Centigrade Temperature Sensors

Features

* n n n n n n n n n n n Calibrated directly in ˚ Celsius (Centigrade) Linear + 10.0 mV/˚C scale factor ± 3˚C accuracy guaranteed Rated for full

Applications

* Low cost due to wafer-level trimming Operates from 4.0V to 10V Less than 120 µA current drain Low self-heating, 0.20˚C in still air Nonlinearity only ± 0.8˚C max over temp Low impedance output, 20Ω for 1 mA load Applications n Battery Management n FAX Machines n Printers Connection Diagram SOT-23
