Part number: LM4545
Manufacturer: National Semiconductor
File Size: 327.51KB
Download: 📄 Datasheet
Description: AC97 Codec
full duplex stereo A/D’s and D/A’s and an analog mixer with 4 stereo and 3 mono inputs, each of which has separate gain, attenuation and mute control. In addition, the LM.
n Desktop PC Audio Systems n Portable PC Audio Systems n Mobile PC Audio Solutions

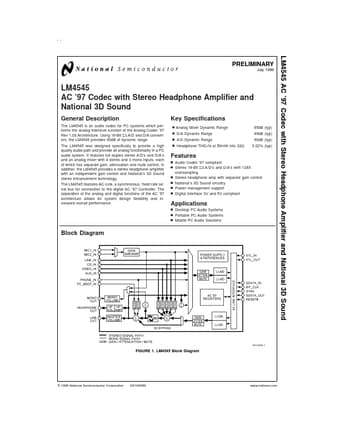

Block Diagram
DS100069-1
FIGURE 1..
The LM4545 is an audio codec for PC systems which performs the analog-intensive function of the Analog Codec ’97 Rev 1.03 Architecture. Using 18-Bit Σ∆ A/D and D/A converters, the LM4545 provides 90dB of dynamic range. The LM4545 was designed specifi.
