LM45

Precision Centigrade Temperature Sensor

Texas Instruments

LM45 Features

* 1

* 2 Calibrated Directly in ° Celsius (Centigrade)

* Linear + 10.0 mV/°C Scale Factor

* ±3°C Accuracy Guaranteed

* Rated for Full

* 20° to +100°C Range

* Suitable for Remote Applications

* Low Cost Due to Wafer-Llevel Trimming

* Operates

LM45 General Description

The LM45 series are precision integrated-circuit temperature sensors, whose output voltage is linearly proportional to the Celsius (Centigrade) temperature. The LM45 does not require any external calibration or trimming to provide accuracies of ±2°C at room temperature and ±3°C over a full

*.

LM45 Datasheet (1.13 MB)

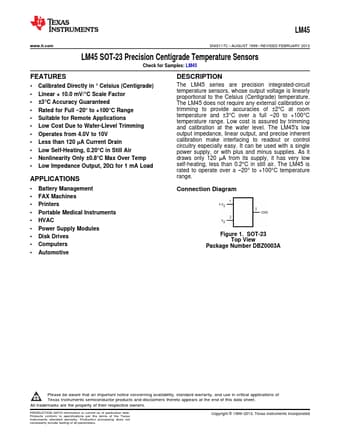

LM45 Datasheet Preview — Preview of LM45 PDF

Datasheet Details

Part number:

LM45

Manufacturer:

Texas Instruments ↗

File Size:

1.13 MB

Description:

Precision centigrade temperature sensor.
LM45 www.ti.com SNIS117C

* AUGUST 1999

* REVISED FEBRUARY 2013 LM45 SOT-23 Precision Centigrade Temperature Sensors Check for Sampl.
