LM4546A Datasheet - Texas Instruments

AC97 Rev2 Multi-Channel Audio Codec

LM4546A Features

* 1

* AC '97 Rev 2 Compliant

* High Quality Sample Rate Conversion from 4 kHz to 48 kHz in 1 Hz Increments

* Multiple Codec Support

* Texas Instruments' 3D Sound Stereo Enhancement Circuitry

* Advanced Power Management Support

* Digital 3.3V and 5V Suppl

LM4546A General Description

The LM4546A is an audio codec for PC systems which is fully PC98 compliant and performs the analog intensive functions of the AC '97 Rev 2 architecture. Using 18-bit Sigma-Delta ADCs and DACs, the LM4546A provides 90 dB of Dynamic Range. The LM4546A was designed specifically to provide a high qualit.

LM4546A Datasheet (643.21 KB)

LM4546A Datasheet Preview — Preview of LM4546A PDF

Datasheet Details

Part number:

LM4546A

Manufacturer:

Texas Instruments ↗

File Size:

643.21 KB

Description:

Ac97 rev2 multi-channel audio codec.

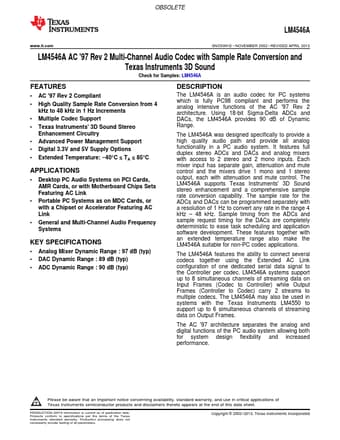

OBSOLETE LM4546A www.ti.com SNOS991E NOVEMBER 2002 REVISED APRIL 2013 LM4546A AC '97 Rev 2 Multi-Channel Audio Codec with Samp.
