LM78L05, 3-Terminal Positive Regulators

LM78LXX Series 3-Terminal Positive Regulators February 2005 LM78LXX Series 3-Terminal Positive Regulators General .
The LM78LXX series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applica.

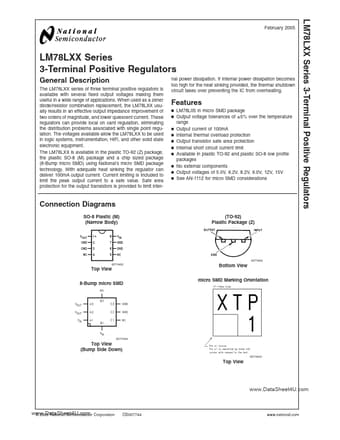

datasheet Preview Page 1 from Datasheet4u.com

LM78L05_NationalSemiconductor.pdf

LM78L05 Datasheet Preview — Preview of LM78L05 PDF

Datasheet Details

Part number:

LM78L05

Manufacturer:

National Semiconductor

File Size:

709.03 KB

Description:

3-Terminal Positive Regulators

Features

* n LM78L05 in micro SMD package n Output voltage tolerances of ±5% over the temperature range n Output current of 100mA n Internal thermal overload protection n Output transistor safe area protection n Internal short circuit current limit n Available in plastic TO-92 and plastic SO-8 low profile pack

Applications

* When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with
