LM78L05AC

3-Terminal Positive Voltage Regulators

LM78L05AC Features

* Y Output current up to 100 mA Y No external components Y Internal thermal overload protection Y Internal short circuit current-limiting Y Available in JEDEC TO-92 Y Output Voltages of 5 0V 6 2V 8 2V 9 0V 12V 15V Y Output voltage tolerances of g5% over the temperature range Connection Diagram Top V

LM78L05AC General Description

The LM78L00 series of 3-terminal positive voltage regulators employ internal current-limiting and thermal shutdown making them essentially indestructible If adequate heat sinking is provided they can deliver up to 100 mA output current They are intended as fixed voltage regulators in a wide range of.

LM78L05AC Datasheet (164.53 KB)

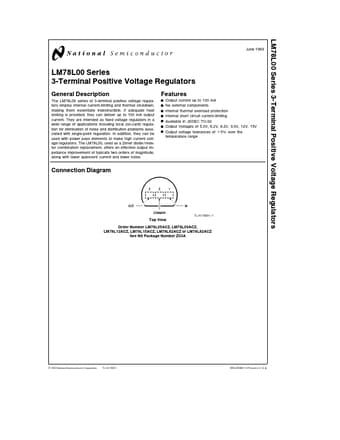

Preview of LM78L05AC PDF

Datasheet Details

Part number:

LM78L05AC

Manufacturer:

National Semiconductor

File Size:

164.53 KB

Description:

3-terminal positive voltage regulators.
