LM810

3-Pin Microprocessor Reset Circuits

National Semiconductor

LM810 Features

* Precise monitoring of 3V, 3.3V, and 5V supply voltages Superior upgrade to MAX809/810 Fully specified over temperature 140ms min. Power-On Reset pulse width, 240ms typical Active-low RESET Output (LM809) Active-high RESET Output (LM810) n Guaranteed RESET Output valid for VCC≥1V n Low Supply Current

LM810 General Description

The LM809/810 microprocessor supervisory circuits can be used to monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, power-down and brown-out conditions. The function of the LM809/810 is to monitor the VCC supply voltage, and .

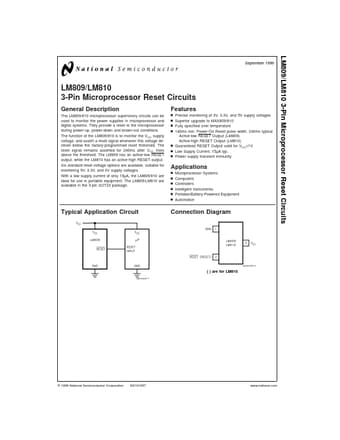

LM810 Datasheet (124.87 KB)

LM810 Datasheet Preview — Preview of LM810 PDF

Datasheet Details

Part number:

LM810

Manufacturer:

National Semiconductor

File Size:

124.87 KB

Description:

3-pin microprocessor reset circuits.
