LM831

LM831 Low Voltage Audio Power Amplifier

LM831 Features

* Y Y Y Y Y Low voltage operation 1 8V to 6 0V High power 440 mW 8X BTL 3V Low AM radiation Low noise Low THD Applications Y Y Y Y Portable tape recorders Portable radios Headphone stereo Portable speakers Typical Application Dual Amplifier with Minimum Parts TL H 6754

* 1 AV e 46 dB BW

LM831 General Description

The LM831 is a dual audio power amplifier optimized for very low voltage operation The LM831 has two independent amplifiers giving stereo or higher power bridge (BTL) operation from two- or three-cell power supplies The LM831 uses a patented compensation technique to reduce high-frequency radiation .

LM831 Datasheet (309.37 KB)

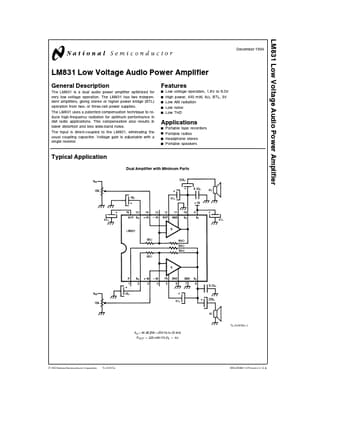

Preview of LM831 PDF

Datasheet Details

Part number:

LM831

Manufacturer:

National Semiconductor

File Size:

309.37 KB

Description:

Lm831 low voltage audio power amplifier.
