LM8325-1

GenI/O - Expander and Keypad Controller

LM8325-1 Features

* 1

* 2 KEY FEATURES

* Internal RC Oscillator, No External Clock Required

* Internal PWM Clock Generation, No External Clock Required

* Programmable I2C-compatible ACCESS.bus Address (Default 0x88)

* Support for Keypad Matrices of up to of 8 x 12 Keys, Plus 8 Spe

LM8325-1 General Description

The LM8325-1 GenI/O - Expander and Keypad Controller is a dedicated device to unburden a host processor from scanning a matrix-addressed keypad and to provide flexible and general purpose, host programmable input/output functions. Three independent PWM timer outputs are provided for dynamic LED brig.

LM8325-1 Datasheet (929.23 KB)

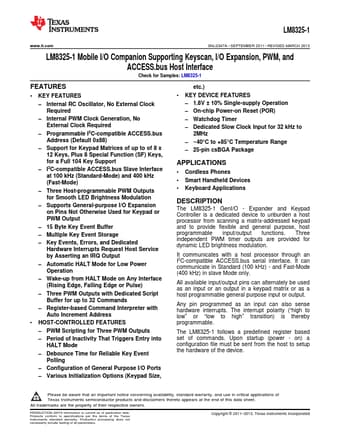

Preview of LM8325-1 PDF

Datasheet Details

Part number:

LM8325-1

Manufacturer:

Texas Instruments ↗

File Size:

929.23 KB

Description:

Geni/o - expander and keypad controller.
LM8325-1 www.ti.com SNLS347A

* SEPTEMBER 2011

* REVISED MARCH 2013 LM8325-1 Mobile I/O Companion Supporting Keyscan, I/O Expansion,.
