LM8333 Keypad Controller

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com LM8333 Keypad Controller with I/O Expansion and ACCESS.bus Host Interface September 2006 LM8333 Keypad Controller with I/O Expa.
The LM8333 is a general-purpose controller for matrixaddressed keypads which provides an ACCESS.

📥 Download Datasheet

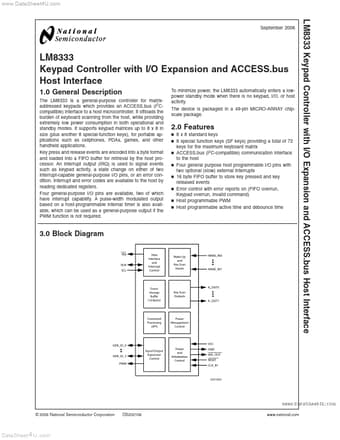

Preview of LM8333 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LM8333
Manufacturer
National Semiconductor
File Size
946.73 KB
Datasheet
LM8333_NationalSemiconductor.pdf
Description
Keypad Controller

Features

* n 8 x 8 standard keys n 8 special function keys (SF keys) providing a total of 72 keys for the maximum keyboard matrix n ACCESS. bus (I2C-compatible) communication interface to the host n Four general purpose host programmable I/O pins with two optional (slow) external Interrupts n 16 byte FIFO buffe

Applications

* such as cellphones, PDAs, games, and other handheld applications. Key press and release events are encoded into a byte format and loaded into a FIFO buffer for retrieval by the host processor. An interrupt output (IRQ) is used to signal events such as keypad activity, a state change on either of two
