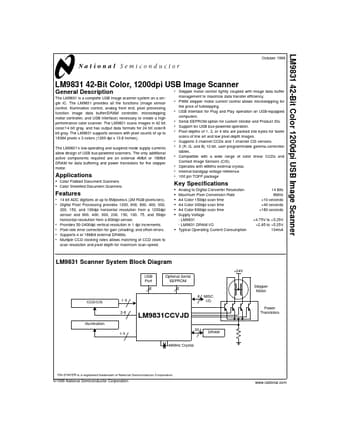

LM9831 42-Bit Color 1200dpi USB Image Scanner
October 1999
N
LM9831 42-Bit Color, 1200dpi USB Image Scanner
General Description
The LM9831 is a complete USB image scanner system on a single IC. The LM9831 provides all the functions (image sensor control, illumination control, analog front end, pixel processing function image data buffer/DRAM controller, microstepping motor controller, and USB interface) necessary to create a high performance color scanner. The LM9831 scans images in 42 bit color/14 bit gray, and has output data formats for 24 bit color/8 bit gray. The LM9831 supports sensors with pixel counts of up to 16384 pixels x 3 colors (1200 dpi x 13.6 inches).
The LM9831’s low operating and suspend mode supply currents allow design of USB bus-powered scanners.
