LMX2310U, LMX - Ultra Low Power Frequency Synthesizer

LMX2310U Description

LMX2310U/LMX2311U/LMX2312U/LMX2313U PLLatinum Ultra Low Power Frequency Synthesizer for RF Personal Communications June 2003 LMX2310U/LMX2311U/LMX23.
The LMX2310/1/2/3U are high performance frequency synthesizers.

LMX2310U Features

* very low current consumption, typically 2.3 mA at 3.0V. The LMX2310/1/2/3U are manufactured using National’s 0.5µ ABiC V silicon BiCMOS process and is available in 20-pin CSP packages. Features n n n n RF operation up to 2.5 GHz 2.7V to 5.5V operation Ultra Low Current Consumption Low prescaler val

LMX2310U Applications

* n n n n Cellular DCS, PCS, WCDMA telephone systems Wireless Local Area Networks (WLAN) Global Positioning Systems (GPS) Other wireless communications systems Functional Block Diagram 20043822 PLLatinum™ is a trademark of National Semiconductor Corporation. © 2003 National Semiconductor Corporati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMX2310U, LMX. Please refer to the document for exact specifications by model.

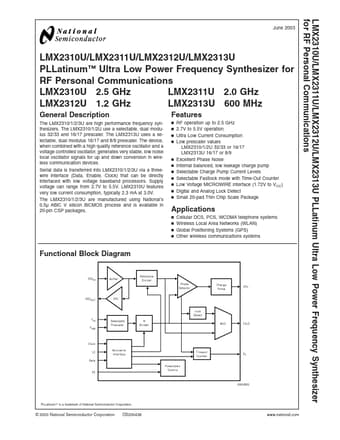

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMX2310U, LMX
Manufacturer
National Semiconductor
File Size
661.55 KB
Datasheet
LMX-2310.pdf
Description
Ultra Low Power Frequency Synthesizer
Note
This datasheet PDF includes multiple part numbers: LMX2310U, LMX.
Please refer to the document for exact specifications by model.
