LMX2311U, LMX PLLatinum Ultra Low Power Frequency Synthesizer

National Semiconductor

Description

LMX2310U/LMX2311U/LMX2312U/LMX2313U PLLatinum Ultra Low Power Frequency Synthesizer for RF Personal Communications June 2003 LMX2310U/LMX2311U/LMX23.
The LMX2310/1/2/3U are high performance frequency synthesizers.

📥 Download Datasheet

LMX2311U Datasheet Preview — This datasheet PDF includes multiple part numbers: LMX2311U, LMX. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: LMX2311U, LMX
Manufacturer: National Semiconductor
File Size: 661.55 KB
Datasheet: LMX-2310.pdf
Description: PLLatinum Ultra Low Power Frequency Synthesizer
Note: This datasheet PDF includes multiple part numbers: LMX2311U, LMX.
Please refer to the document for exact specifications by model.

Features

* very low current consumption, typically 2.3 mA at 3.0V. The LMX2310/1/2/3U are manufactured using National’s 0.5µ ABiC V silicon BiCMOS process and is available in 20-pin CSP packages. Features n n n n RF operation up to 2.5 GHz 2.7V to 5.5V operation Ultra Low Current Consumption Low prescaler val

Applications

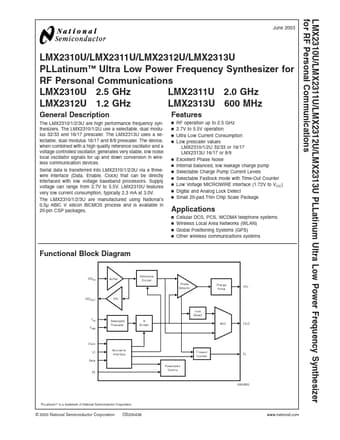

* n n n n Cellular DCS, PCS, WCDMA telephone systems Wireless Local Area Networks (WLAN) Global Positioning Systems (GPS) Other wireless communications systems Functional Block Diagram 20043822 PLLatinum™ is a trademark of National Semiconductor Corporation. © 2003 National Semiconductor Corporati
