LMX2313U PLLatinum Ultra Low Power Frequency Synthesizer

The LMX2310/1/2/3U are high performance frequency synthesizers. The LMX2310/1/2U use a selectable, dual modulus 32/33 and 16/17 prescaler. The LMX2313U uses a selectable, dual modulus 16/17 and 8/9 prescaler. The device, when combined with a high quality reference oscillator and a voltage controlled.

LMX2313U Features

* very low current consumption, typically 2.3 mA at 3.0V. The LMX2310/1/2/3U are manufactured using National’s 0.5µ ABiC V silicon BiCMOS process and is available in 20-pin CSP packages. Features n n n n RF operation up to 2.5 GHz 2.7V to 5.5V operation Ultra Low Current Consumption Low prescaler val

LMX-2310.pdf

This datasheet PDF includes multiple part numbers: LMX2313U, LMX. Please refer to the document for exact specifications by model.

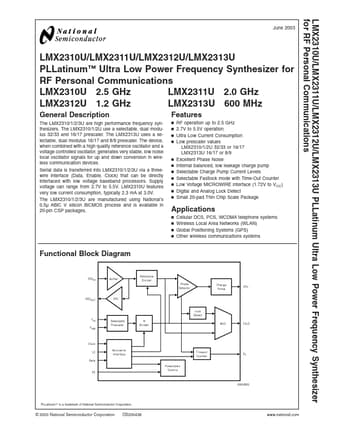

LMX2313U Datasheet Preview Page 2 LMX2313U Datasheet Preview Page 3

Datasheet Details

Part number:

LMX2313U, LMX

Manufacturer:

National Semiconductor

File Size:

661.55 KB

Description:

Pllatinum ultra low power frequency synthesizer.

Note:

This datasheet PDF includes multiple part numbers: LMX2313U, LMX.
Please refer to the document for exact specifications by model.
