MM54HC00 Datasheet, Gate, National Semiconductor

MM54HC00 Features

  • Gate Y Typical propagation delay 8 ns Y Wide power supply range 2
      – 6V Y Low quiescent current 20 mA maximum (74HC Series) Y Low input current 1 mA maximum Y Fanout of 10 LS-

PDF File Details

Part number:

MM54HC00

Manufacturer:

National Semiconductor

File Size:

89.58kb

Download:

📄 Datasheet

Description:

Quad 2-input nand gate. These NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power

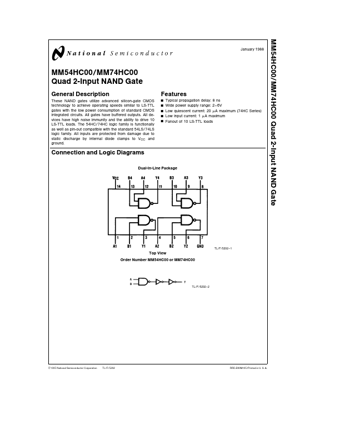

Datasheet Preview: MM54HC00 📥 Download PDF (89.58kb)
