MM54HC4017 Datasheet - National Semiconductor

Decade Counter/Divider

MM54HC4017 Features

* Y Y Y Y Y Wide power supply range 2

* 6V Typical operating frequency 30 MHz Fanout of 10 LS-TTL loads Low quiescent current 80 mA (74HC Series) Low input current 1 0 mA Connection Diagram Dual-In-Line and Flat Package TL F 5351

* 1 Order Number MM54HC4017 or MM74HC4017 C1995 Nat

MM54HC4017 General Description

The MM54HC4017 MM74HC4017 is a 5-stage Johnson counter with 10 decoded outputs that utilizes advanced silicon-gate CMOS technology Each of the decoded outputs is normally low and sequentially goes high on the low to high transition of the clock input Each output stays high for one clock period of th.

MM54HC4017 Datasheet (126.59 KB)

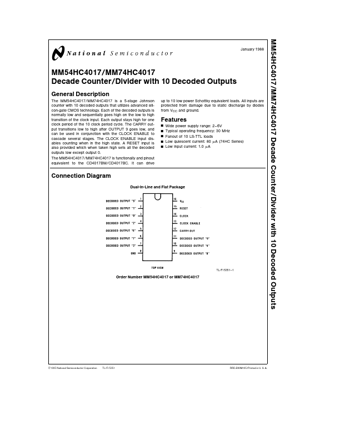

Preview of MM54HC4017 PDF

Datasheet Details

Part number:

MM54HC4017

Manufacturer:

National Semiconductor

File Size:

126.59 KB

Description:

Decade counter/divider.
MM54HC4017 MM74HC4017 Decade Counter Divider with 10 Decoded Outputs January 1988 MM54HC4017 MM74HC4017 Decade Counter Divider with 10 Decoded Outpu.
