MM54HC123A Datasheet PDF (Dual Retriggerable Monostable Multivibrator)

MM54HC123A - Dual Retriggerable Monostable Multivibrator

Description

The MM54 74HC123A high speed monostable multivibrators (one shots) utilize advanced silicon-gate CMOS technology They feature speeds comparable to low power Schottky TTL circuitry while retaining the low power and high noise immunity characteristic of CMOS circuits Each multivibrator

Features

both a negative A and a positive B transition triggered input either of which can be used as an inhibit input Also included is a clear input that when taken low resets the one shot The ’HC123 can be triggered on the positive transition of the clear while A is held low and B is held high The ’HC123A is retriggerable That is it may be triggered repeatedly while their outputs are generating a pulse and the pulse will be extended Pulse width stability over a wide range of temperature and supply is a.

Datasheet Details

Part number	MM54HC123A
Manufacturer	National
File Size	198.34 KB
Description	Dual Retriggerable Monostable Multivibrator
Datasheet	MM54HC123A Datasheet

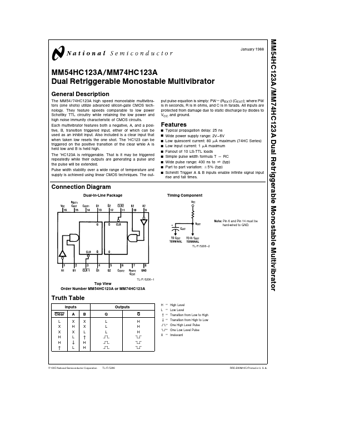

Additional preview pages of the MM54HC123A datasheet.

📁 Similar Datasheet

MM54HC112 - Dual J-K Flip-Flop (National Semiconductor)

MM54HC133 - 13-Input NAND Gate (National Semiconductor)

MM54HC147 - 10-to-4 Line Priority Encoder (National Semiconductor)

MM54HC148 - 8-3 Line Priority Encoder (National Semiconductor)

MM54HC160 - Synchronous Binary Counter (National Semiconductor)

MM54HC161 - Synchronous Binary Counter (National Semiconductor)

MM54HC162 - Synchronous Binary Counter (National Semiconductor)

MM54HC163 - Synchronous Binary Counter (National Semiconductor)

MM54HC174 - Hex D Flip-Flops (National Semiconductor)

MM54HC190 - Up/Down Counters (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

MM54HC123A MM74HC123A Dual Retriggerable Monostable Multivibrator January 1988 MM54HC123A MM74HC123A Dual Retriggerable Monostable Multivibrator General Description The MM54 74HC123A high speed monostable multivibrators (one shots) utilize advanced silicon-gate CMOS technology They feature speeds comparable to low power Schottky TTL circuitry while retaining the low power and high noise immunity characteristic of CMOS circuits Each multivibrator features both a negative A and a positive B transition triggered input either of which can be used as an inhibit input Also included is a clear input that when taken low resets the one shot The ’HC123 can be triggered on the positive transition of the clear while A is held low and B is held high The ’HC123A is retriggerable That is it may be trig
