MM74C910

256 Bit Tri-state Random Access Read/write Memory

MM74C910 Features

* Y Y Y Y Y Supply voltage range High noise immunity TTL compatible fan out Input address register Low power consumption Fast access time TRI-STATE outputs High voltage inputs 3 0V to 5 5V 0 45VCC (typ ) 1 TTL load 250 nW package (typ ) (chip enabled or disabled) 250 ns (typ ) at 5 0V Y Y Y Logic

MM74C910 General Description

The MM54C910 MM74C910 is a 64 word by 4-bit random access memory Inputs consist of six address lines four data input lines a WE and a ME line The six address lines are internally decoded to select one of the 64 word locations An internal address register latches the address information on the positi.

MM74C910 Datasheet (204.99 KB)

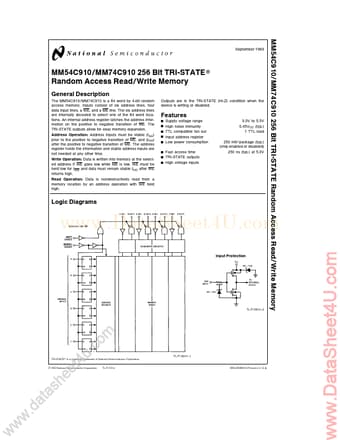

Preview of MM74C910 PDF

Datasheet Details

Part number:

MM74C910

Manufacturer:

National Semiconductor

File Size:

204.99 KB

Description:

256 bit tri-state random access read/write memory.
MM54C910 MM74C910 256 Bit TRI-STATE Random Access Read Write Memory September 1989 MM54C910 MM74C910 256 Bit TRI-STATE Random Access Read Write Memo.
