MM74C90

4-Bit Decade Counter 4-Bit Binary Counter

MM74C90 Features

* s Wide supply voltage range: s Guaranteed noise margin: s High noise immunity: s Low power compatibility: Fan out of 2 TTL driving 74L s The MM74C93 follows the MM74L93 Pinout 3V to 15V 1V 0.45 VCC (typ.) Ordering Code: Order Number MM74C90N MM74C93N Package Number N14A N14A Package Description 14-

MM74C90 General Description

The MM74C90 decade counter and the MM74C93 binary counter and complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. The 4-bit decade counter can reset to zero or preset to nine by applying appropriate logic level on the R01, R02, R91 and R92 inp.

MM74C90 Datasheet (55.10 KB)

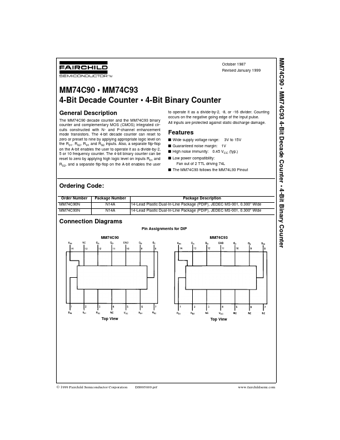

Preview of MM74C90 PDF

Datasheet Details

Part number:

MM74C90

Manufacturer:

Fairchild

File Size:

55.10 KB

Description:

4-bit decade counter 4-bit binary counter.
MM74C90

* MM74C93 4-Bit Decade Counter

* 4-Bit Binary Counter October 1987 Revised January 1999 MM74C90

* MM74C93 4-Bit Deca.
