MM74C907, Hex Open Drain N / P-Channel Buffers

MM54C906 MM74C906 Hex Open Drain N-Channel Buffers MM54C907 MM74C907 Hex Open Drain P-Channel Buffers March 1988 MM54C906 MM74C906 Hex Open Drain N-.
These buffers employ monolithic CMOS technology in achieving open drain outputs The MM54C906 MM74C906 consists of six inverters driving six N-channel.

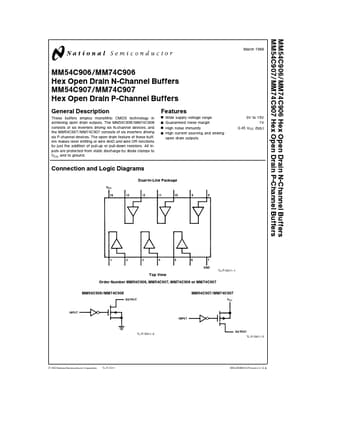

datasheet Preview Page 1 from Datasheet4u.com

MM74C907_NationalSemiconductor.pdf

MM74C907 Datasheet Preview — Preview of MM74C907 PDF

Datasheet Details

Part number:

MM74C907

Manufacturer:

National

File Size:

106.51 KB

Description:

Hex Open Drain N / P-Channel Buffers

Features

* Y Y Y Y Wide supply voltage range Guaranteed noise margin High noise immunity High current sourcing and sinking open drain outputs 3V to 15V 1V 0 45 VCC (typ ) Connection and Logic Diagrams Dual-In-Line Package TL F 5911
* 1 Top View Order Number MM54C906 MM54C907 MM74C906 or MM74C907 M

Applications

* Wire OR Gate Wire AND Gate TL F 5911
* 4 TL F 5911
* 5 Note Can be extended to more than 2 inputs Note Can be extended to more than 2 inputs CMOS or TTL to PMOS Interface CMOS or TTL to CMOS at a Higher VCC Note VCC a VDD s 18V VCC s 15V TL F 5911
* 7 TL F 5911
