MM74C905 - 12-Bit Successive Approximation Register

Product Overview

National Semiconductor

Datasheet Details

Part number	MM74C905
Manufacturer	National Semiconductor
File Size	86.72 KB
Description	12-Bit Successive Approximation Register
Datasheet	MM74C905 Datasheet

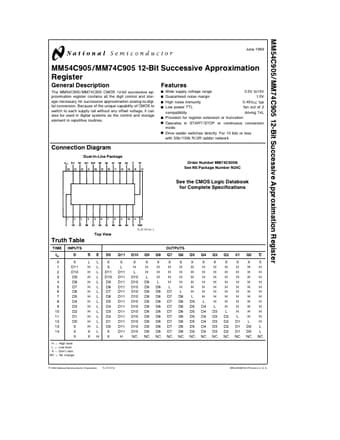

Additional preview pages of the MM74C905 datasheet.

Product details

Description

The MM54C905 MM74C905 CMOS 12-bit successive approximation register contains all the digit control and storage necessary for successive approximation analog-to-digital conversion Because of the unique capability of CMOS to switch to each supply rail without any offset voltage it can also be used in digital systems as the control and storage element in repetitive routines

Features

Y Wide supply voltage range 3 0V to15V Y Guaranteed noise margin 1 0V Y High noise immunity Y Low power TTL 0 45VCC typ fan out of 2 compatibility driving 74L Y Provision for register extension or truncation Y Operates in START STOP or continuous conversion mode Y Drive ladder switches directly For 10 bits or less with 50k 100k R 2R ladder network Connection Diagram Dual-In-Line Package Order Number MM74C905N See NS Package Number N24C See the.
