MM74HC147 - 10-to-4 Line Priority Encoder

National Semiconductor

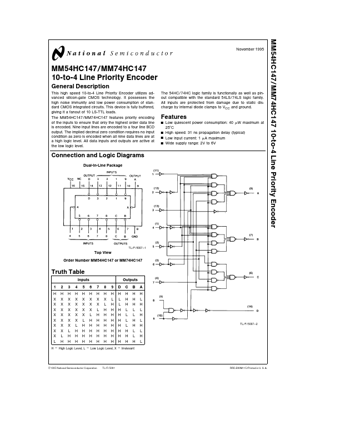

MM74HC147 Datasheet Preview — Preview of MM74HC147 PDF

Datasheet Details

Part number	MM74HC147
Manufacturer	National Semiconductor ↗
File Size	108.18 KB
Description	10-to-4 Line Priority Encoder
Datasheet	MM74HC147_NationalSemiconductor.pdf

MM74HC147 Product details

Description

This high speed 10-to-4 Line Priority Encoder utilizes advanced silicon-gate CMOS technology It possesses the high noise immunity and low power consumption of standard CMOS integrated circuits This device is fully buffered giving it a fanout of 10 LS-TTL loads The MM54HC147 MM74HC147

Features

priority encoding of the inputs to ensure that only the highest order data line is encoded Nine input lines are encoded to a four line BCD output The implied decimal zero condition requires no input condition as zero is encoded when all nine data lines are at a high logic level All data inputs and outputs are active at the low logic level The 54HC 74HC logic family is functionally as well as pinout compatible with the standard 54LS 74LS logic family All inputs are protected from damage due to st.
