MN54AC14-X Datasheet, Trigger, National Semiconductor

MN54AC14-X Features

  • Trigger ICC reduced by 50% Outputs source/sink 24 mA Standard Military Drawing (SMD) - AC14:5962-87624 2 MN54AC14-X REV 2A0 MICROCIRCUIT DATA SHEET (Absolute Maximum Ratings) (Note 1) Suppl

PDF File Details

Part number:

MN54AC14-X

Manufacturer:

National Semiconductor

File Size:

47.36kb

Download:

📄 Datasheet

Description:

Hex inverter schmidt trigger. The AC14 contains six logic inverters which accept standard CMOS output levels. They are capable of transforming slowly changing inpu

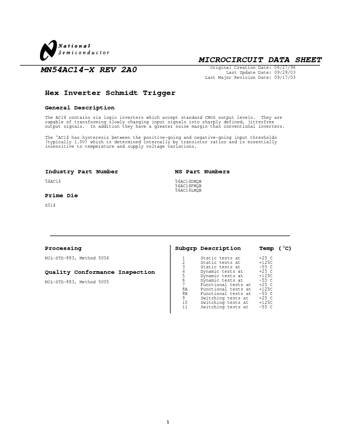

Datasheet Preview: MN54AC14-X 📥 Download PDF (47.36kb)
