MN54AC257-X

Quad 2 Input Multiplexer

MN54AC257-X Features

* Icc and Ioz reduced by 50% Multiplexer expansion by tying outputs together Noninverting TRI-STATE outputs Outputs source/sink 24 mA Standard Military Drawing (SMD) - AC257: 5962-88703 2 MN54AC257-X REV 1B0 MICROCIRCUIT DATA SHEET (Absolute Maximum Ratings) (Note 1) Supply Voltage (Vcc) -0.5V to

MN54AC257-X General Description

The AC257 is a quad 2-input multiplexer with 3-state outputs. Four bits of data from two sources can be selected using a Common Data Select Input. The four outputs present the selected data in true (noninverted) form. The outputs may be switched to a high impedance state by placing a logic HIGH on t.

MN54AC257-X Datasheet (47.93 KB)

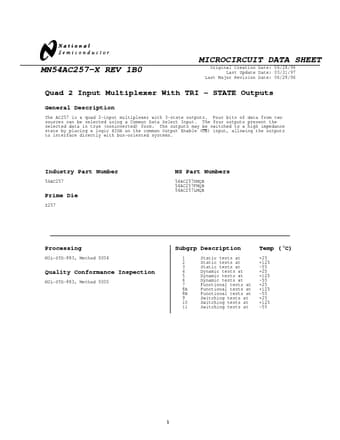

Preview of MN54AC257-X PDF

Datasheet Details

Part number:

MN54AC257-X

Manufacturer:

National Semiconductor

File Size:

47.93 KB

Description:

Quad 2 input multiplexer.
www.DataSheet4U.com MICROCIRCUIT DATA SHEET MN54AC257-X REV 1B0 Original Creation Date: 06/28/96 Last Update Date: 03/31/97 Last Major Revision Date:.
