MN54AC258-X

Quad 2 Input Multiplexer

MN54AC258-X Features

* Icc and Ioz reduced by 50% Multiplexer expansion by tying outputs together Inverting TRI-STATE outputs Outputs source/sink 24 mA Standard Military Drawing (SMD) - AC258: 5962-91604 2 MN54AC258-X REV 1B0 MICROCIRCUIT DATA SHEET (Absolute Maximum Ratings) (Note 1) Supply Voltage (Vcc) -0.5V to +7.

MN54AC258-X General Description

The AC258 is a quad 2-input multiplexer with 3-state outputs. Four bits of data from two sources can be selected using a Common Data Select Input. The four outputs present the selected data in the complement (inverted) form. The outputs may be switched to a high impedance state with a logic HIGH on .

MN54AC258-X Datasheet (47.45 KB)

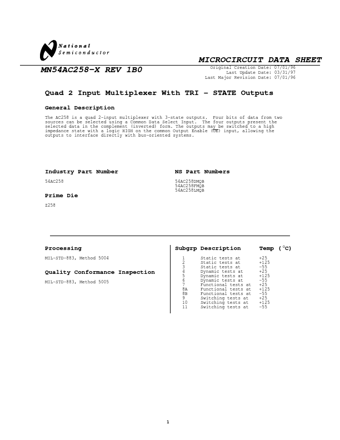

Preview of MN54AC258-X PDF

Datasheet Details

Part number:

MN54AC258-X

Manufacturer:

National Semiconductor

File Size:

47.45 KB

Description:

Quad 2 input multiplexer.
www.DataSheet4U.com MICROCIRCUIT DATA SHEET MN54AC258-X REV 1B0 Original Creation Date: 07/01/96 Last Update Date: 03/31/97 Last Major Revision Date:.
