PC87410

PC87410 PCI-IDE Interface Controller

PC87410 Features

* Y Y Y Y Fully compatible with PCI specifications rev 2 0 (April 1993) Programmable Base Address registers Interfaces with the 32 bits PCI local bus to IDE drives Support IDE PIO timing mode 0 1 2 of ANSI ATA specifications Y Y Y Support Mode 3 (11 MB s) timing proposal on enhanced IDE (IDE-2 or A

PC87410 General Description

The PCI-IDE Interface Controller is designed to interface the IDE drive directly onto the PCI bus It provides write posting and read pre-fetches allowing the CPU to run concurrently with IDE cycles It connects IDE drIves ‘‘gluelessly’’ into the PCI bus and supports faster ATA devices using modes 1 2.

PC87410 Datasheet (197.22 KB)

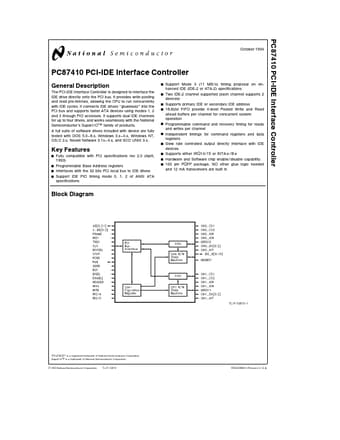

Preview of PC87410 PDF

Datasheet Details

Part number:

PC87410

Manufacturer:

National Semiconductor

File Size:

197.22 KB

Description:

Pc87410 pci-ide interface controller.
