PC87416, PC8 Datasheet - National Semiconductor

PC87416 LPC Server I/O

The National Semiconductor PC8741x family of LPC ServerI/O devices (“PC8741x”) comprises highly integrated Advanced I/O products. The PC8741x is targeted for a wide range of servers and workstations that use the Low Pin Count (LPC) bus for the host interface and the serial ACCESS.bus or SMBus® for t.

PC87416 Features

* an X-Bus extension for read and write operations over the X-Bus for both LPC and ACCESS.bus cycles. Boot Flash and I/O devices can be accessed over this X-Bus. Embedded controllers can access the PC8741x and its X-Bus via the ACCESS.bus or SMBus serial interface when VSB exists, regardless of the LP

PC8-7413.pdf

This datasheet PDF includes multiple part numbers: PC87416, PC8. Please refer to the document for exact specifications by model.

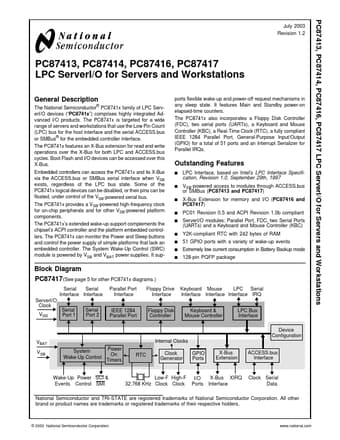

PC87416 Datasheet Preview Page 2 PC87416 Datasheet Preview Page 3

Datasheet Details

Part number:

PC87416, PC8

Manufacturer:

National Semiconductor

File Size:

3.09 MB

Description:

Lpc server i/o.

Note:

This datasheet PDF includes multiple part numbers: PC87416, PC8.
Please refer to the document for exact specifications by model.
