PC87415

PCI-IDE DMA Master Mode Interface Controller

National Semiconductor

PC87415 Features

* Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y Y PCI bus interface for up to 4 IDE devices 33 MHz 32-bit PCI bus data path with full parity error reporting 16 7 MByte sec maximum IDE transfer rate Support for 2 IDE channels ( 2 IDE devices per channel) Primary or secondary IDE addressing (1F0x 170x)

PC87415 General Description

The Enhanced PCI-IDE Interface is a single-chip controller packaged in a 100-pin PQFP It provides 2 IDE channels for interfacing up to 4 IDE drives or 2 IDE drives and CD-ROM directly on the PCI Local bus An enhanced DMA controller on-chip increases system performance by providing full scatter gathe.

PC87415 Datasheet (374.03 KB)

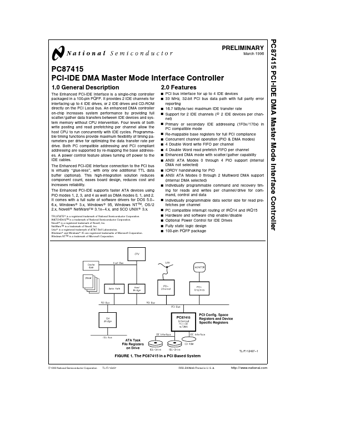

PC87415 Datasheet Preview — Preview of PC87415 PDF

Datasheet Details

Part number:

PC87415

Manufacturer:

National Semiconductor

File Size:

374.03 KB

Description:

Pci-ide dma master mode interface controller.
PC87415 PCI-IDE DMA Master Mode Interface Controller PRELIMINARY March 1996 PC87415 PCI-IDE DMA Master Mode Interface Controller 1 0 General Descrip.
