27C256 - 262 /144-Bit (32K x 8) High Performance CMOS EPROM

National

The 27C256 by National is a 262 /144-Bit (32K x 8) High Performance CMOS EPROM. Below is the official datasheet preview.

📥 Download Datasheet

27C256 262 /144-Bit (32K x 8) High Performance CMOS EPROM by National - Datasheet Preview — Official preview page of the **27C256** 262 /144-Bit (32K x 8) High Performance CMOS EPROM datasheet (National).

Datasheet Details

Part number	27C256
Manufacturer	National
File Size	148.21 KB
Description	262 /144-Bit (32K x 8) High Performance CMOS EPROM
Datasheet	27C256_NationalSemiconductor.pdf

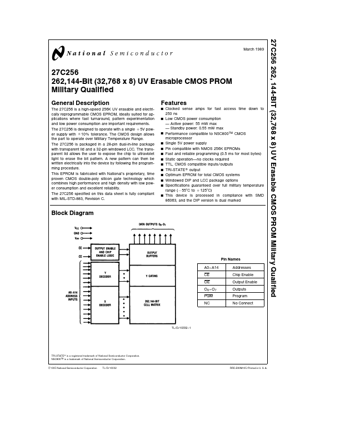

Additional preview pages of the 27C256 datasheet.

27C256 Product details

Description

The NM27C256 is a 256K Electrically Programmable Read Only Memory It is manufactured in National’s latest CMOS split gate EPROM technology which enables it to operate at speeds as fast as 120 ns access time over the full operating range The NM27C256 provides microprocessor-based systems extensive storage capacity for large portions of operating system and application software Its 120 ns access time provides high speed operation with high-performance CPUs The NM27C256 offers a single chip solutio

Features

Y Y Y Y High performance CMOS 120 ns access time JEDEC standard pin configuration 28-pin DIP package 32-pin chip carrier Drop-in replacement for 27C256 or 27256 Manufacturer’s identification code Block Diagram TL D 10833.
1 TRI-STATE is a registered trademark of National Semiconductor Corporation HPCTM is a trademark of National Semiconductor Corporation C1995 National Semiconductor Corporation TL D 10833 RRD-B30M65 Printed in U S A Connection Diagrams 27C080 27C040 27C020 27C01.
