MM74HC245A

Octal TRI-STATE Transceiver

MM74HC245A Features

* Y Y Y Y Y Y Typical propagation delay 13 ns Wide power supply range 2

* 6V Low quiescent current 80 mA maximum (74 HC) TRI-STATE outputs for connection to bus oriented systems High output drive 6 mA (minimum) Same as the ’645 Connection Diagram Dual-In-Line Package TL F 5165

* 1

MM74HC245A General Description

This TRI-STATE bidirectional buffer utilizes advanced silicon-gate CMOS technology and is intended for two-way asynchronous communication between data buses It has high drive current outputs which enable high speed operation even when driving large bus capacitances This circuit possesses the low pow.

MM74HC245A Datasheet (127.34 KB)

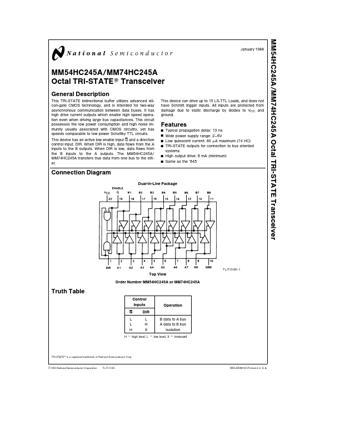

Preview of MM74HC245A PDF

Datasheet Details

Part number:

MM74HC245A

Manufacturer:

National

File Size:

127.34 KB

Description:

Octal tri-state transceiver.
