NP502S, NP501 50A Power Modules

Nell Semiconductor

Description

NP500 Series RRooHHSS Nell High Power Products Power Modules Passivated Assembled Circuit Elements, 50A Available RoHS * COMPLIANT .
The NP500 series of integrated power circuits consists of power thyristors and power diodes configured in a single package.

📥 Download Datasheet

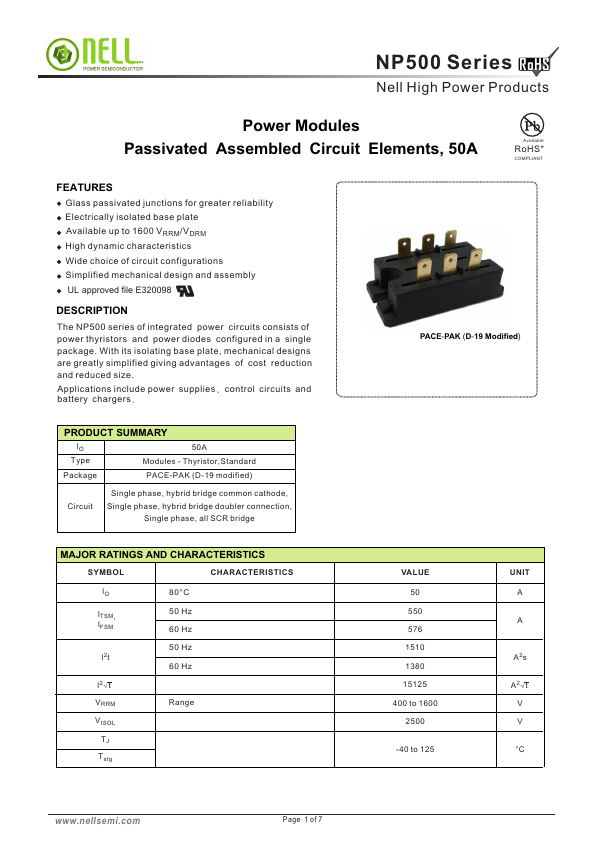

NP502S Datasheet Preview — This datasheet PDF includes multiple part numbers: NP502S, NP501. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NP502S, NP501
Manufacturer: Nell Semiconductor
File Size: 905.45 KB
Datasheet: NP501-NellSemiconductor.pdf
Description: 50A Power Modules
Note: This datasheet PDF includes multiple part numbers: NP502S, NP501.
Please refer to the document for exact specifications by model.

Applications

* include power supplies, control circuits and battery chargers. PACE-PAK (D-19 Modified) PRODUCT SUMMARY lO 50A Type Modules - Thyristor,Standard Package PACE-PAK (D-19 modified) Circuit Single phase, hybrid bridge common cathode, Single phase, hybrid bridge doubler connection, Single phase
