NT7086

80ch Segment / Common Driver

NT7086 Features

* ‧Power supply voltage:+5 V±10%, + 3V±10% ‧Supply voltage for display: 6 to 28 V (VDD-VEE) ‧4-bit parallel/1-bit serial data processing (in segment mode).. ‧Single mode operation / dual mode operation (in common mode). ‧Power down function (in segment mode). ‧Applicable LCD duty:1/64 ~ 1/256 ‧Interfa

NT7086 General Description

NAME FUNCTION Generates latch clock (LCK), shift clock (SCK) and control clock timing according to the input of CL1, CL2 and control inputs (CS, AMS). In common driver application mode, this block generates the shift clock (LCK) for the common data Bi-directional shift register. Determines the direc.

NT7086 Datasheet (273.36 KB)

Preview of NT7086 PDF

Datasheet Details

Part number:

NT7086

Manufacturer:

NeoTec

File Size:

273.36 KB

Description:

80ch segment / common driver.

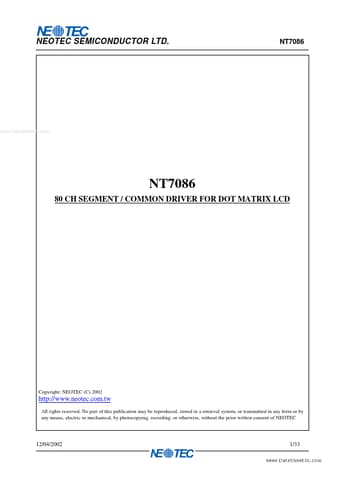

NEOTEC SEMICONDUCTOR LTD. NT7086 www.DataSheet4U.com NT7086 80 CH SEGMENT / COMMON DRIVER FOR DOT MATRIX LCD Copyright: NEOTEC (C) 2002 http://ww.
