NT72C-S10DC24, NT73C-S10DC12 Datasheet - Semtronics

NT72C-S10DC24 (NT72C/73C-xxxx) NHG Power Relays

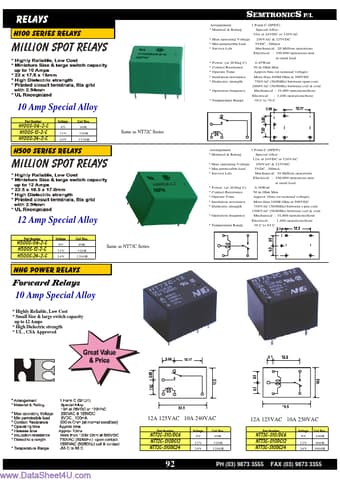

relays H100 series relays SEMTRONICS P/L Arrangement Material & Rating 1 Form C (SPDT) Special Alloy: 10A at 24VDC or 120VAC Max operating Voltage 250VAC & 125VDC Min permissible load 5VDC , 100mA Service Life Mechanical: 20 Million operations Electrical : 100,000 operations min at rated load Power (at 20 Deg C) 0.45Watt Contact Resistance 50 m Ohm Max Operate Time Approx 6ms (at nominal voltage) Insulation resistance More than 100M Ohm at 500VDC .

NT73C-S10DC12_Semtronics.pdf

NT72C-S10DC24 Datasheet Preview — This datasheet PDF includes multiple part numbers: NT72C-S10DC24, NT73C-S10DC12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NT72C-S10DC24, NT73C-S10DC12

Manufacturer:

Semtronics

File Size:

179.10 KB

Description:

(nt72c/73c-xxxx) nhg power relays.

Note:

This datasheet PDF includes multiple part numbers: NT72C-S10DC24, NT73C-S10DC12.
Please refer to the document for exact specifications by model.
