NT7086PQ

LCD driver

NT7086PQ Features

* Power supply voltage:+5 V±10%, + 3V±10%

* Supply voltage for display: 6 to 28 V (VDD-VEE)

* 4-bit parallel/1-bit serial data processing (in segment mode)..

* Single mode operation / dual mode operation (in common mode).

* Power down function (in segment mode).

NT7086PQ General Description

NAME Clock control Data latch control Power down function Output level selector 20x4-bitsegm ent data bi-directional shift register 80-bit data latch / common data bi-directional shift register 80-bit level shifter 80-bit 4-level driver FUNCTION Generates latch clock (LCK), shift clock (SCK) and c.

NT7086PQ Datasheet (851.26 KB)

Preview of NT7086PQ PDF

Datasheet Details

Part number:

NT7086PQ

Manufacturer:

NeoTec

File Size:

851.26 KB

Description:

Lcd driver.

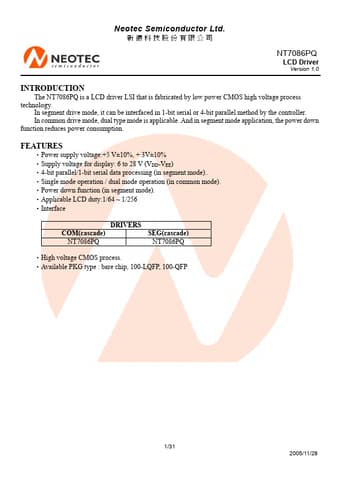

Neotec Semiconductor Ltd. NT7086PQ LCD Driver Version 1.0 INTRODUCTION The NT7086PQ is a LCD driver LSI that is fabricated by low power CMOS high v.
