NJU6624A

12-CHARACTER 1-LINE DOT MATRIX LCD CONTROLLER DRIVER with SMOOTH SCROLL FUNCTION

NJU6624A Features

* n 12-character 1-line Dot Matrix LCD Controller Driver n Maximum 60 Icon Display n Serial Direct Interface with Microprocessor - 14 x 8 bits : Maximum 12-character 1-line Display n Display Data RAM - 7,840 bits : 224 Characters for 5 x 7 Dots n Character Generator ROM - 1,120 bits : 32 Patterns( 5 x

NJU6624A General Description

The NJU6624A/B is a Dot Matrix LCD controller driver for 12-character 1-line with icon display in single chip. It contains bleeder resistance, general output port, keyscan circuit, CR oscillator, microprocessor interface circuit, instruction decoder controller, character generator ROM/RAM, high volt.

NJU6624A Datasheet (0.96 MB)

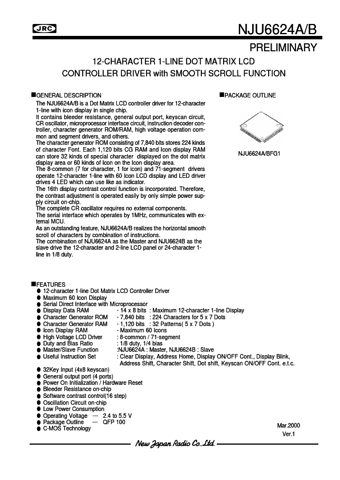

Preview of NJU6624A PDF

Datasheet Details

Part number:

NJU6624A

Manufacturer:

New Japan Radio

File Size:

0.96 MB

Description:

12-character 1-line dot matrix lcd controller driver with smooth scroll function.
