NJU6624C

14-CHARACTER 1-LINE DOT MATRIX LCD CONTROLLER DRIVER with SMOOTH SCROLL FUNCTION

NJU6624C Features

* n 14-character 1-line Dot Matrix LCD Controller Driver n Maximum 70 Icon Display n Serial Direct Interface with Microprocessor - 14 x 8 bits : Maximum 14-character 1-line Display n Display Data RAM - 7,840 bits : 224 Characters for 5 x 7 Dots n Character Generator ROM - 1,120 bits : 32 Patterns( 5 x

NJU6624C General Description

The NJU6624C is a Dot Matrix LCD controller driver for 14-character 1line with icon display in single chip. It contains bleeder resistance, general output port, keyscan circuit, CR oscillator, microprocessor interface circuit, instruction decoder controller, character generator ROM/RAM, high voltage.

NJU6624C Datasheet (874.89 KB)

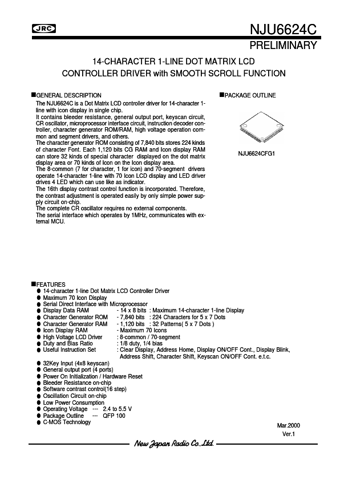

Preview of NJU6624C PDF

Datasheet Details

Part number:

NJU6624C

Manufacturer:

New Japan Radio

File Size:

874.89 KB

Description:

14-character 1-line dot matrix lcd controller driver with smooth scroll function.
