NJU6624B - 12-CHARACTER 1-LINE DOT MATRIX LCD CONTROLLER DRIVER with SMOOTH SCROLL FUNCTION

Product Overview

New Japan Radio

Part number	NJU6624B
Manufacturer	New Japan Radio
File Size	0.96 MB
Description	12-CHARACTER 1-LINE DOT MATRIX LCD CONTROLLER DRIVER with SMOOTH SCROLL FUNCTION
Datasheet	NJU6624B Datasheet

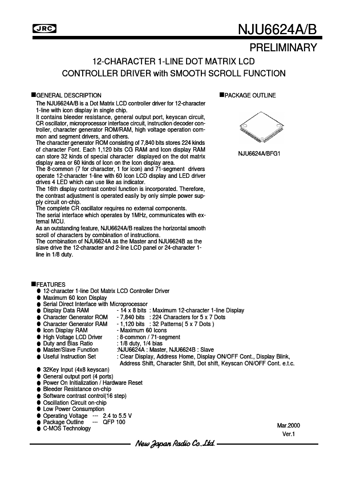

Additional preview pages of the NJU6624B datasheet.

The NJU6624A/B is a Dot Matrix LCD controller driver for 12-character 1-line with icon display in single chip.

n 12-character 1-line Dot Matrix LCD Controller Driver n Maximum 60 Icon Display n Serial Direct Interface with Microprocessor - 14 x 8 bits : Maximum 12-character 1-line Display n Display Data RAM - 7,840 bits : 224 Characters for 5 x 7 Dots n Character Generator ROM - 1,120 bits : 32 Patterns( 5 x 7 Dots ) n Character Generator RAM - Maximum 60 Icons n Icon Display RAM High Voltage LCD Driver : 8-common / 71-segment n Duty and Bias Ratio : 1/8 duty, 1/4 bias n :NJU6624A : Master, NJU6624B : Sl.
