NJU7200

SUPER LOW OPERATING CURRENT C-MOS 3-TERMINAL VOLTAGE REGULATOR

New Japan Radio

NJU7200 Features

* TERMINAL DESCRIPTION

* Super Low Operating Current (0.9μA typ.@VOUT=1.0V)

* Wide Range of Output Voltage Setting

* Low Dropout Voltage (ΔVIO < 0.18V, @VOUT=1.0V, IO = 0.5mA)

* Small Temperature Coefficient of Output Voltage No. 1 2 3 Description GND Input

NJU7200 General Description

The NJU7200 series is a super low operating current C-MOS 3-terminal positive voltage regulator which contains internal accurate voltage reference, error amplifier, control transistor and output voltage setting resistor. The regulation voltage is fixed by internal circuits and the following line-up .

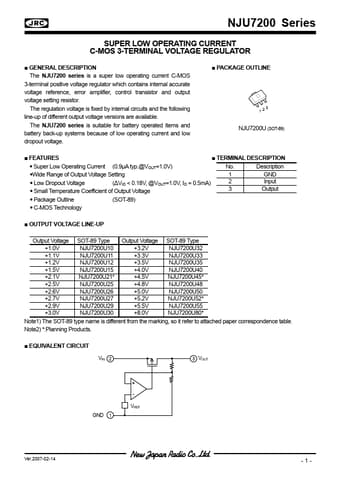

NJU7200 Datasheet (216.08 KB)
