NJU72010 Datasheet, Amplifier, New Japan Radio

NJU72010 Features

  • Amplifier q Operating Voltage q Operating Current q Output Coupling Capacitor-less q Pop Noise Suppression Circuit q LPF q C-MOS Technology q Package Outline +2.7 to +3.6V IDD=5mA typ. at V+=3.3

PDF File Details

Part number:

NJU72010

Manufacturer:

New Japan Radio

File Size:

195.13kb

Download:

📄 Datasheet

Description:

2vrms ground referenced stereo line amplifier. The NJU72010 is an audio line Amplifier . It can swing 2Vrms (5.6V peak-to-peak) signal at 3.3V operating voltage. Ground-referenced

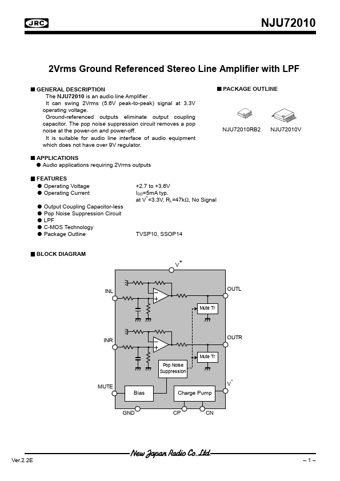

Datasheet Preview: NJU72010 📥 Download PDF (195.13kb)
Page 2 of NJU72010 Page 3 of NJU72010

NJU72010 Application

  • Applications q Audio applications requiring 2Vrms outputs s FEATURES q Operating Voltage q Operating Current q Output Coupling Capacitor-less q Pop
