NJU72013 Datasheet - New Japan Radio

2Vrms Ground Referenced Stereo Line Amplifier

NJU72013 Features

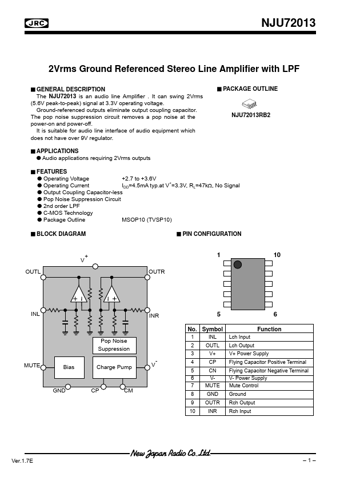

* O Operating Voltage +2.7 to +3.6V O Operating Current IDD=4.5mA typ.at V+=3.3V, RL=47kΩ, No Signal O Output Coupling Capacitor-less O Pop Noise Suppression Circuit O 2nd order LPF O C-MOS Technology O Package Outline MSOP10 (TVSP10) Q BLOCK DIAGRAM Q PIN CONFIGURATION OUTL V+ 1 10 OUT

NJU72013 General Description

The NJU72013 is an audio line Amplifier . It can swing 2Vrms (5.6V peak-to-peak) signal at 3.3V operating voltage. Ground-referenced outputs eliminate output coupling capacitor. The pop noise suppression circuit removes a pop noise at the power-on and power-off. It is suitable for audio line interfa.

NJU72013 Datasheet (164.61 KB)

NJU72013 Datasheet Preview — Preview of NJU72013 PDF

Datasheet Details

Part number:

NJU72013

Manufacturer:

New Japan Radio

File Size:

164.61 KB

Description:

2vrms ground referenced stereo line amplifier.
