NMV4805 3kVDC Isolated 1W Single and Dual Output

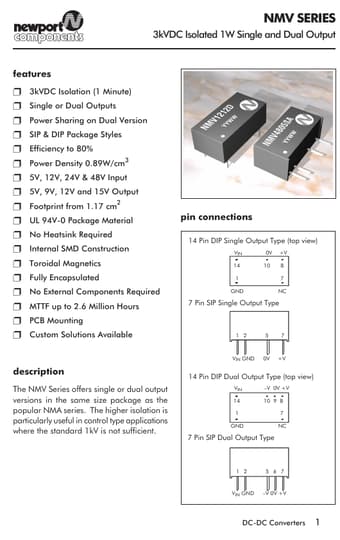

The NMV Series offers single or dual output versions in the same size package as the popular NMA series. The higher isolation is particularly useful in control type applications where the standard 1kV is not sufficient. VIN GND 0V +V 14 Pin DIP Dual Output Type (top view) VIN *V 0V +V 14 1.

NMV4805 Features

* p 3kVDC Isolation (1 Minute) p Single or Dual Outputs p Power Sharing on Dual Version p SIP & DIP Package Styles p Efficiency to 80% p Power Density 0.89W/cm3 p 5V, 12V, 24V & 48V Input p 5V, 9V, 12V and 15V Output p Footprint from 1.17 cm2 p UL 94V-0 Package Material p No Heatsink Required p Intern

NMV0505-NewportComponents.pdf

This datasheet PDF includes multiple part numbers: NMV4805, NMV0505. Please refer to the document for exact specifications by model.
NMV4805 Datasheet Preview Page 2 NMV4805 Datasheet Preview Page 3

Datasheet Details

Part number:

NMV4805, NMV0505

Manufacturer:

Newport Components

File Size:

347.37 KB

Description:

3kvdc isolated 1w single and dual output.

Note:

This datasheet PDF includes multiple part numbers: NMV4805, NMV0505.
Please refer to the document for exact specifications by model.
