NMV4805DAC 3kVDC Isolated 1W Single & Dual Output DC/DC Converters

The NMV series offers single or dual output versions in the same size package as the popular NMA series. The higher isolation is particularly useful in control type applications where the standard 1kV is not sufﬁcient. Nominal Input Voltage Output Voltage Output Current Load Regulation (Max) Ripple.

NMV4805DAC Features

* RoHS compliant

* Efﬁciency to 85%

* Power density up to 0.85W/cm3

* Single or dual output

* UL 94V-0 package material

* No heatsink required

* Footprint from 1.17cm2

* Industry standard pinout

* Power sharing on dual output

NMV2412SC-muRata.pdf

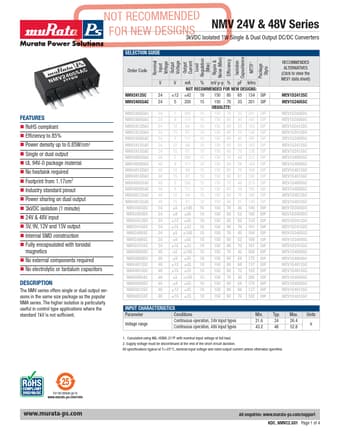

NMV4805DAC Datasheet Preview — This datasheet PDF includes multiple part numbers: NMV4805DAC, NMV2412SC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NMV4805DAC, NMV2412SC

Manufacturer:

muRata

File Size:

124.91 KB

Description:

3kvdc isolated 1w single & dual output dc/dc converters.

Note:

This datasheet PDF includes multiple part numbers: NMV4805DAC, NMV2412SC.
Please refer to the document for exact specifications by model.
