PAT20016, PAT20012 (PAT20012 / PAT20016) THYRISTOR MODULE

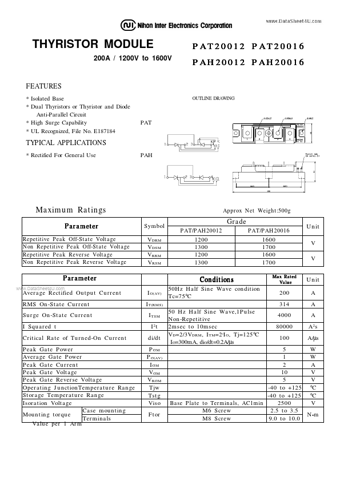

📥 Download Datasheet  Datasheet Preview Page 1

Description

THYRISTOR MODULE 200A / 1200V to 1600V PAT20012 PAT20016 PAH20012 PAH20016 .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PAT20016, PAT20012. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PAT20016, PAT20012
Manufacturer
Nihon Inter Electronics Corporation
File Size
291.88 KB
Datasheet
PAT20012_NihonInterElectronicsCorporation.pdf
Description
(PAT20012 / PAT20016) THYRISTOR MODULE
Note
This datasheet PDF includes multiple part numbers: PAT20016, PAT20012.
Please refer to the document for exact specifications by model.

Features

* Isolated Base
* Dual Thyristors or Thyristor and Diode Anti-Parallel Circuit
* High Surge Capability

Applications

* Rectified For General Use PAH Maximum Ratings Parameter Repetitive Peak Off-State Voltage Non Repetitive Peak Off-State Voltage Repetitive Peak Reverse Voltage Non Repetitive Peak Reverse Voltage Approx Net Weight:500g Symbol VDRM VDSM VRRM VRSM Grade PAT/PAH20012 PAT/PAH20016 Unit V V 1
