PAT2010 Datasheet - Vishay

PAT2010 Precision Automotive Thin Film Chip Resistor

www.vishay.com PAT Vishay Dale Thin Film Precision Automotive Thin Film Chip Resistors, AEC-Q200 Qualified, 2 kV ESD Rating These chip resistors are available in wraparound terminations styles in 8 case sizes. They incorporate self passivated enhanced tantalum nitride resistor film to give superior performance on moisture resistance, electrostatic discharge, voltage coefficient, power handling and resistance stability. The terminations consist of an adhesion layer, a leach resistant nickel ba.

PAT2010 Features

* Resistance range: 2.5 ī— to 3 Mī—

* AEC-Q200 qualified

* AEC-Q200 ESD rated class 1C (2 kV)

* Laser trimmed to any value

* Moisture resistant to MIL-STD-202, method 202

* Tantalum nitride resistor film on high purity alumina substrate

* 100 % v

PAT2010 Datasheet (105.33 KB)

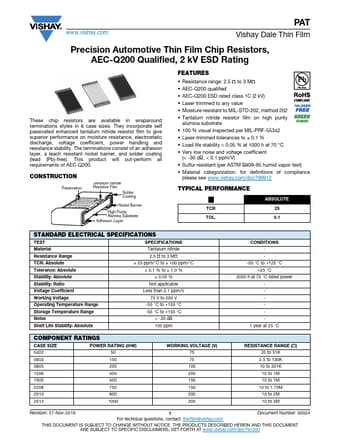

Preview of PAT2010 PDF
PAT2010 Datasheet Preview Page 2 PAT2010 Datasheet Preview Page 3

Datasheet Details

Part number:

PAT2010

Manufacturer:

Vishay ↗

File Size:

105.33 KB

Description:

Precision automotive thin film chip resistor.
