PAT2512, PAT0402 Datasheet - Vishay

PAT2512 Precision Automotive Thin Film Chip Resistor

www.vishay.com PAT Vishay Dale Thin Film Precision Automotive Thin Film Chip Resistors, AEC-Q200 Qualified, 2 kV ESD Rating These chip resistors are available in wraparound terminations styles in 8 case sizes. They incorporate self passivated enhanced tantalum nitride resistor film to give superior performance on moisture resistance, electrostatic discharge, voltage coefficient, power handling and resistance stability. The terminations consist of an adhesion layer, a leach resistant nickel ba.

PAT2512 Features

* Resistance range: 2.5 ī— to 3 Mī—

* AEC-Q200 qualified

* AEC-Q200 ESD rated class 1C (2 kV)

* Laser trimmed to any value

* Moisture resistant to MIL-STD-202, method 202

* Tantalum nitride resistor film on high purity alumina substrate

* 100 % v

PAT0402-Vishay.pdf

This datasheet PDF includes multiple part numbers: PAT2512, PAT0402. Please refer to the document for exact specifications by model.

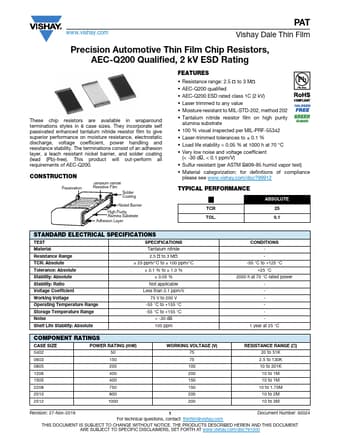

PAT2512 Datasheet Preview Page 2 PAT2512 Datasheet Preview Page 3

Datasheet Details

Part number:

PAT2512, PAT0402

Manufacturer:

Vishay ↗

File Size:

105.33 KB

Description:

Precision automotive thin film chip resistor.

Note:

This datasheet PDF includes multiple part numbers: PAT2512, PAT0402.
Please refer to the document for exact specifications by model.
